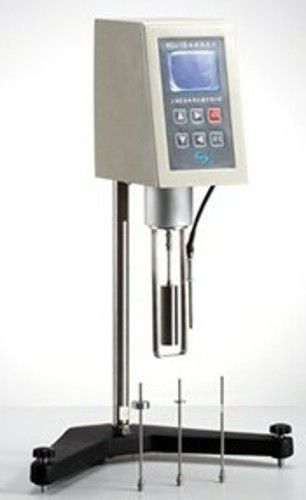

rotational viscometer / process
U-Therm International (H.K.) Limited
I. Main technical features
1. The instrument adopts advanced mechanical design technology and manufacturing process, using micro-computer technology to control speed, collect data and process data. Accurate
data acquisition, high sensitivity, reliable test results, easy to use, and good looking.
2. Display selection of white backlight, high brightness LCD display, can directly display the viscosity of the sample, the number of the rotor, speed and other information, data display clear.
3. The test data can show on the screen real time and also output by printer. In addition, the instrument can also connect with PC via RS232 communication port.
4. Choose different models can have different ranges, for measuring different samples.
II. Main technical specifications
1. Measurement range: (10～2000000)mPa•s
2. Rotor Specifications: No.1～No.4, four spindles
3. Rotor speed:（0.3、0.6、1.5、3、6、12、30、60）r/min
4. Measuring accuracy: ±1% (F•S)
5. Print output: Needle printer
6. Communication with the PC: RS232 interface
7. Power supply: AC 220 V±10%, 50 Hz±10 %( 12V power adapter)
8. Working environment: temperature 5 ℃ ~ 35 ℃, relative humidity ≤80%
