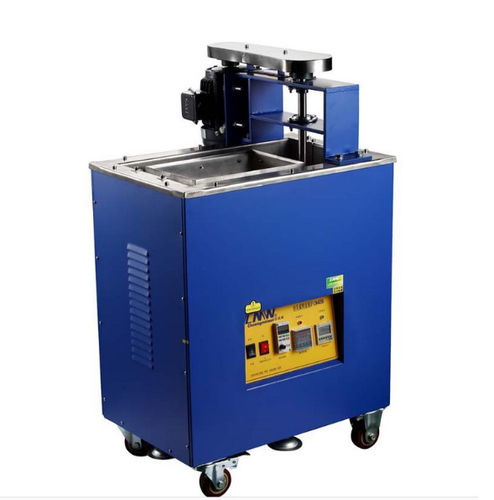

infrared welding machine / vertical
CM-4235A U-Therm International (H.K.) Limited

Add to MyDirectIndustry favorites
infrared welding machine / vertical infrared welding machine / vertical - CM-4235A
{{requestButtons}}

Characteristics

  • Technique:

    infrared

  • Other characteristics:

    vertical

Description

Specification:
1.The lead-free tin welding machine use high-power energy-saving infrared heating core, fast tin melting, long life.
2. It adopts imported frequency conversion speed regulating motor, the peak is stable, the tin surface of the nozzle is bright, the oxide layer is removed, and the over-current protection of the under-temperature holding device is used to effectively protect the motor product.
3. Adopt PID micro-computer chip intelligent control, double digital display, intuitive and clear, high precision, high thermal sensitivity, rapid temperature recovery and fast temperature compensation.
4. The lead-free tin furnace is made of imported pure titanium material, which is resistant to high temperature, corrosion, abrasion and durability.theleaded furnace use the stainless steel materials.
5. Using one-week time control, you can set the switch time of one week, save the waiting time before work, and improve production efficiency.

Technical Parameter:
1:Item:CM4235A
2:Tin furnace Materials:Stainless steel materials
3:Type:Lead free
4:Rated Power:4500W
5:Temperature range :Room temperature-500℃
6:Vent size:300*200mm
7:Tin Pot size:500*300*140mm
8:Product Weight:70kg
