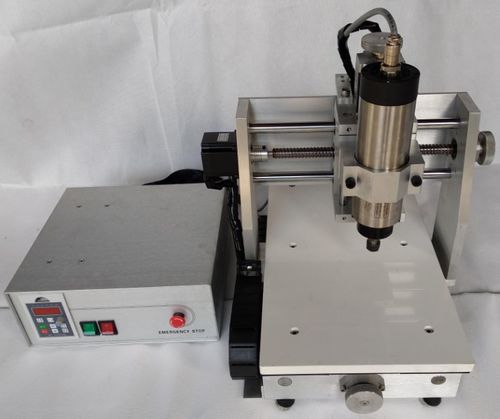

CNC drilling machine SUNY-ZZC200

CNC drilling machine
CNC drilling machine
Add to favorites
Compare this product


Characteristics

Type
CNC

Description

Specification: Product usage: for PCB drilling and milling; The transmission system: stepping motor/advanced axis/all three axis advanced wire stem drive; Self-contained mating PC control software; Machine self-contained operation panel: “pause/step” key switch and six directions adjustment of X+, X-, Y+, Y-, Z+, Z- three axis; Support format: NC Drill and PCB2.8 format Communication interface: RS232 and USB double hardware interface Drilling depth: 0~15mm; Repeat precision: ±0.01mm/300mm; Spindle speed: 20000 revolve/min; Drilling speed: 60 apertures/min; Drilling diameter: 0.4mm~3mm Working voltage: AC200V-250V/50Hz Working power: 300W Work dimension: X: 340mm, Y: 220mm, Z: 20mm; Self-contained mating PC control software, lifetime free upgrades; Shape volume: 605mm×515mm×425mm Net weight: 35KG.
