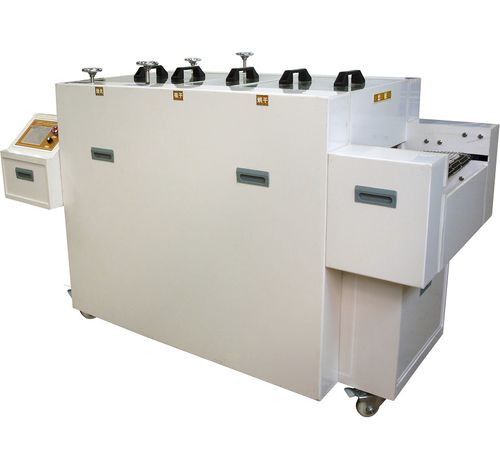

Metal polishing machine SUNY-ZPG500
PCBautomatic

metal polishing machine
metal polishing machine
Add to favorites
Compare this product


Characteristics

Machined material
for metals
Applications
PCB
Other characteristics
automatic

Description

Specification: 1. Product usage: automatic buffing processing of PCB surface; 2. Main functions: double screw adjusting wheel; electrical automatic control and water drainage; transmission guide rail dismantling, automatic transmission; 3. Brush board method: single, double buffing 4. Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition production buffing process manual; In touch screen you can play the circuit board design sketch after buffing process; 5. Brush roller type: Φ110mm 320#; 6. Brush board dimension: width≤400mm length≥100mm; 7. Brush board thickness: 0.5mm~6mm adjusted through the hand wheel; 8. Drying power: 4KW; 9. Transmission motor: 0.5HP, 0.2M~10M/ stepless speed regulation; 10. Power supply: AC380V/50Hz; 11. Entire machine power: 7KW (about 3KW with drying function off); 12. Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service; 13. Dimension: 1710mm×820mm×1090mm 14. Weight: 230 kg.
