automatic laminator / for PCB
SUNY-ZFM300 U-Therm International (H.K.) Limited

Add to MyDirectIndustry favorites

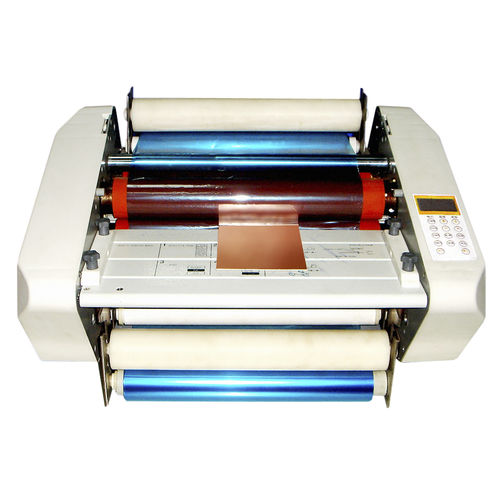

automatic laminator / for PCB automatic laminator / for PCB - SUNY-ZFM300
{{requestButtons}}

Characteristics

  • Options:

    automatic, for PCB

Description

Specification:

1. Usage: transfer photoreceptive film to the copper-clad board through heating;

2. Maximum film laminating width: 350mm;

3. Film laminating mode: special up and down automatic film-collecting device, which can realize double-face automatic board-entering, automatic film-collecting and automatic film-covering;

4. Configuration characteristics: intelligent single-chip microcomputer control, automatic temperature control function, adjustable film- laminating temperature and speed;

5. Display mode: liquid crystal display;

6. Transfer printing speed: 0.5~1.2m/min adjustable;

7. Heating mode: inner-heating silicon roller;

8. Working voltage: 220V/50Hz

9. Heating tube power: 1000W

10. Overall dimension: length 450mm×width 600mm×height 350mm;

11. Net weight: 40KG.
