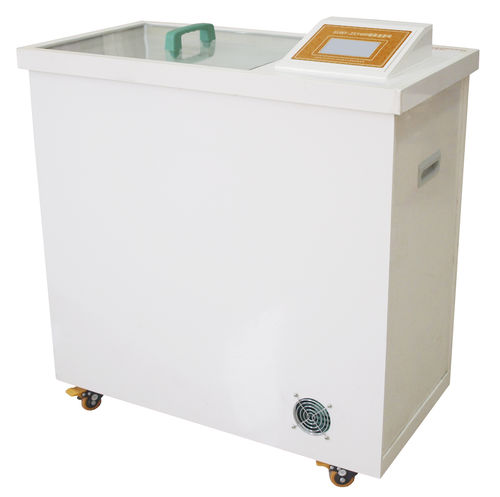

micro PCB etching machine micro PCB etching machine - SUNY-ZWS420


  • Type:



Spray micro erosion machine SUNY-ZWS420

1. Usage: realizing micro erosion process of the circuit board processing through high pressure spraying;
2. Function characteristics: opening-cover detection function to better protect the operator not splashed by liquid; low liquid alarm function, preventing dry heating function, automatic constant temperature function, automatic regular alarm function;
3. Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen;
4. Maximum micro erosion size: 500mm×500mm double-sided board;
5. Micro erosion mode: hanging double-sided spraying micro erosion;
6. Micro erosion time: 5S~99M59S adjustable;
7. Micro erosion temperature: room temperature ~55°C adjustable
8. Heating tube: 2200W*2, titanium heating tube;
9. Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service;
10. Dosage of micro erosion liquid: 60L (standard);
11. Working power: AC220V/50Hz 5000W;
12. Overall dimension: 1010mm×750mm×1080mm
13. Net weight: 80KG.
