drying room
SUNY-ZHG300 U-Therm International (H.K.) Limited

Add to MyDirectIndustry favorites

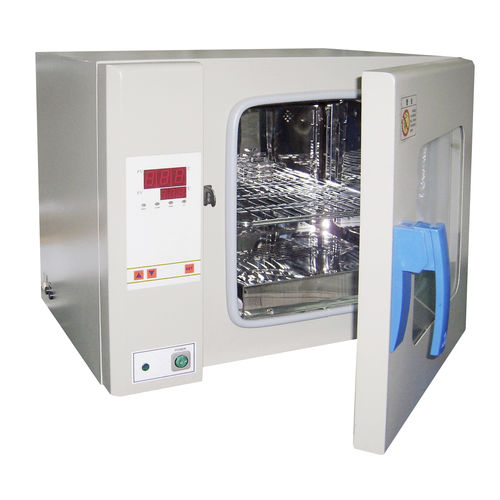

drying room drying room - SUNY-ZHG300
{{requestButtons}}

Description

Specification:

1. Usage: drying and curing of line, resistant welding and character ink;
2. Structure characteristics: automatic cycle wind heating, making the temperature more uniform; container with mirror surface of stainless steel, beautiful and durable; with heat insulation shell, temperature rises more quickly;
3. Function characteristics: automatic shutdown at fixed time, automatic alarm and automatic constant temperature;
4. Temperature adjustment range: room temperature~250°C adjustable;
5. Temperature resolution: 1°C;
6. Temperature fluctuation degree: ±1°C;
7. Time setting: 0~999 min adjustable;
8. Drying room volume: length 350mm×width 350mm×height 350mm;
9. Heating power: 500W;
10. With two stainless steel layers dividing drying room into three layers; equipped with stainless steel special board frame, with seven fixed PCB slots, baking 7 pieces of PCB at the same time;
11. Power supply: AC220V/50Hz;
12. Entire machine power: 550W
13. Overall dimension: length 640mm×width 485mm×height 545mm;
14. Weight: 50Kg.
