reflow soldering machine
SUNY-SMT640 U-Therm International (H.K.) Limited

Add to MyDirectIndustry favorites

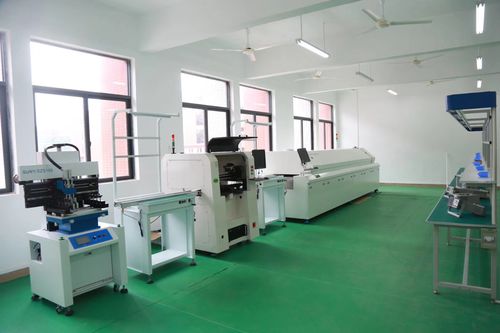

reflow soldering machine reflow soldering machine - SUNY-SMT640
{{requestButtons}}

Characteristics

  • Technique:

    reflow

Description

Technical Parameters:

1.Windows user interface, free to switch both English and traditional and simplified Chinese online, 17-inch
LCD monitor.
2.Segmented heating function, temperature curve analysis, storage and invoking function.
3.The number of heating zones: 12 heated module (up six and down six)
4.Heating zone length: 2200mm,
5.Cooling zone mode: one segment natural air-cooled
6.The maximum width of the PCB: mesh belt 400mm
7.Transport direction: Left - Right
8.Transport height: 880 ± 20mm,
9.Mode of transport: network drive
10.Transport speed :0-2000mm / min
11.Power supply: three-phase five-wire (power off UPS protection)
12.Starting Power: 18KW
13.Normal power: 4KW
14.Heating time: 20min
15.Machine control mode: Japan Mitsubishi PLC + Lenovo computer
16.Temperature control range: 350 °C
17.Temperature control modes: PID / SSR
18.Temperature control accuracy: ± 2 °C
19.PCB temperature horizontal deviation: ±8 °C
20.Abnormal alarm: the temperature tolerance alarm
21.Weight (KG): 800KG
22.Machine size: L3400 * W800 * H1400mm
