organic matter analyzer / flue gas / combustion / benchtop
EA-CS-8800c U-Therm International (H.K.) Limited

{{requestButtons}}

Characteristics

  • Measured entity:

    organic matter, flue gas

  • Measured value:

    combustion

  • Configuration:

    benchtop

  • Other characteristics:

    modular, automatic, infrared

Description

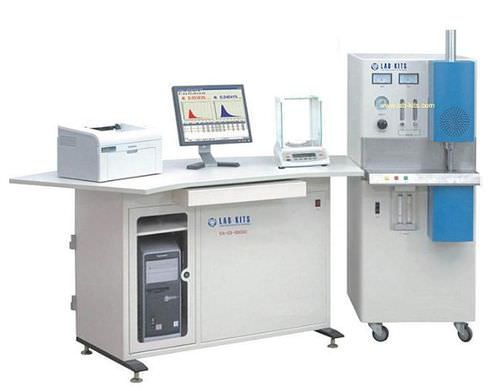

The High-frequency Infrared Carbon & Sulfur Analyzer is suitable for carbon and sulfur determination of steel, iron, alloy, foundry core sand, non-ferrous metals, cement, ore, coke, catalysts, magnetic materials, ceramics, inorganic, graphite, refractory materials, battery materials and plants, etc.

The unit has a high-frequency furnace combustion infrared absorption method used for detection. It has a measurement range of C: 0.00001% -10.0000%, which can be expanded to 99.99999% and S: 0.00001% -6.0000%, which can also be expanded to 99.99999%.

It has a precision of carbon RSD ≤ 0.5% sulfur: RSD ≤ 1.0%, sensitivity of 0.1ppm minimum reading, detection cell of carbon pool which can add a low-carbon pool, and analysis time that can be configured from 20 seconds to 100 seconds (usually 35 seconds).
