metal analyzer / alloy / cement / iron
EA-CSA-8820 U-Therm International (H.K.) Limited

{{requestButtons}}

Characteristics

  • Measured entity:

    metal, alloy, cement, iron, flue gas

  • Measured value:

    combustion

  • Configuration:

    benchtop

  • Other characteristics:

    infrared

Description

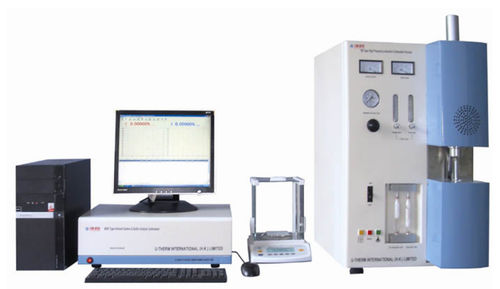

The 8820 Infrared carbon and sulfur analyzer is being widely-used together with the WF-L88 High-Frequency Induction Combustion Furnace. This has the ability to determine the quality fraction of both carbon and sulfur which make up the steels, irons, alloys, non-ferrous materials, cements, ores, activators, glasses, ceramics, and other materials. This instrument is mainly consists of an infrared testing unit, high frequency induction heating unit which is of three layers (Upper, middle and low layer), computer, printer, and electronic balance. The carbons conforms to the ISO9556, the Sulfur to the standards of the ISO4935 and lastly, the precision to the National Metrological Verification Standards JJG395-97. This device has an adjustable 25-60 seconds (but generally at about 35 seconds) time of analysis.
