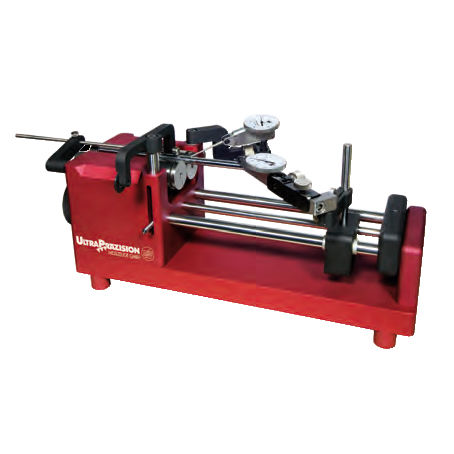

Concentricity test bench 1559 50x series for materialsmechanical
Add to favorites
Compare this product
Characteristics
- Test type
- concentricity
- Test material
- for materials
- Technology
- mechanical
Description
Works standard
For checking concentricity and wobble
Concentricity accuracy 0,002mm
Precision rollers Ø30mm with groove
made of hardened tool steel
Drive with hand wheel on side face
Aluminium housing, anodized
Hard chromed steel bars for
measuring stand sliding
Spring loaded work piece clamping system
Work piece anvil adjustable in length and height
2 measuring stands for dial test indicators, mounting hole Ø 8mm
Delivered in individual packages without dial test indicators
