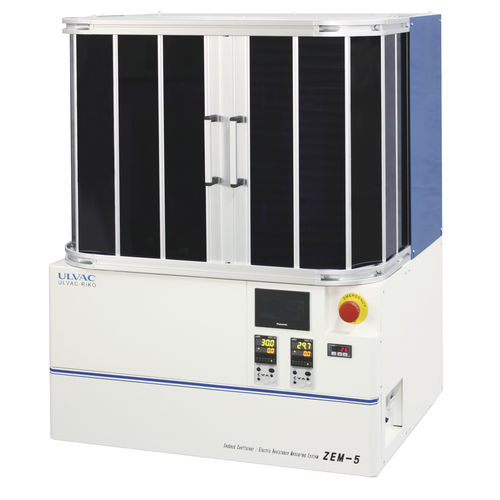

Temperature measurement system ZEM-5

Seebeck Coefficient / Electric Resistance Measurement System ZEM-5 series A series corresponding to special specifications for the properties of various thermoelectric materials and thin films Seebeck Coefficient/Electric Resistance Measurement Systems that can meet various needs with specifications specialized to the characteristics of materials including high-temperature materials, high-resistance materials, and thin films. SPECIAL FEATURES / FURTHER APPLICATIONS APPLICATIONS Evaluate the thermoelectric properties of a wide variety of materials including semiconductors, ceramics, and metals FEATURES A series corresponding to special specifications for the characteristics of various thermoelectric materials and thin films A type C thermocouple is used for the temperature detection sensor, making this system optimal for evaluating Si-based thermoelectric materials (SiGe, MgSi, others) (model HT) V/I plot that self-diagnoses the ohmic contact is standard Measurement of high temperature up to 1200°C (model HT) Measurement of high resistance of maximum 10 MΩ (model HR) Measurement of materials formed as a film on substrates (model TF) Measurement of low temperature from -150°C to 200°C (model LT) A patent and a standard Thermoelectric power JIS R 1650-1 Resistivity JIS R 1650-2
