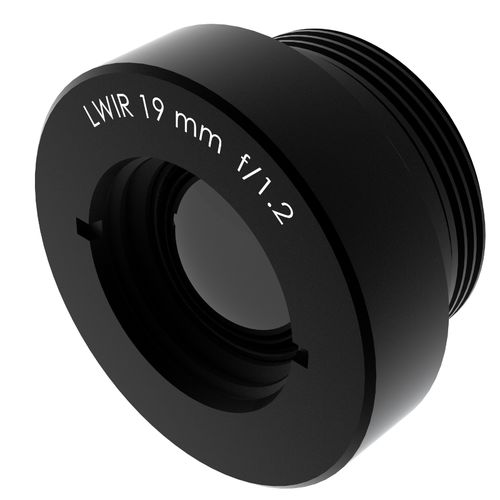

Fixed-focus camera objective 14024_100

infraredmachine visionfor micro-imaging applications

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This passively athermalized infrared lens is suitable for use with 17 µm and 25 µm qVGA+ detectors and smaller. Its low distortion makes it well suited for thermal imaging applications. Optical Properties F-number/Aperture f/1.2 Transmission > 94% Focus range 1 m to infinity with refocus of 0.37 mm Waveband 8 - 12 µm Mechanical Properties Mechanical shock MIL-E-5400T Weight 29.0 g Interface thread M25x0.5 Back focal length* 10.2 mm Flange back distance* 19.47 mm *: value applicable with 1 mm Ge window (not included) Environmental Properties Sealing IP67 Solar radiation MIL-STD-810G Method 505.5 Vibration MIL-STD-810E Method 514.4 Proc I Cat 8 Operating temperature -40°C to +60°C Storage temperature -57°C to +105°C
