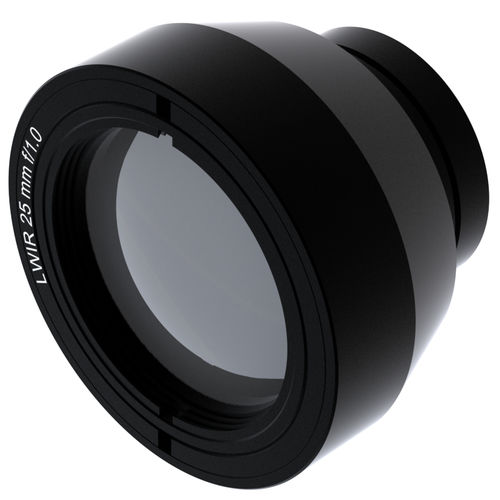

Fixed-focus camera objective 18073_100

infraredhigh-resolutionIR

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This passively athermalized infrared lens fits the latest 12 μm VGA uncooled detectors or smaller. Its low distortion and extreme sharpness makes it ideally suited for use in thermal imaging applications. Optical Properties F-number/Aperture f/1.0 Transmission > 94% Focus range 0.5 m to infinity with 1.2 mm refocus Waveband 8 - 12 µm Mechanical Properties Weight 60.9 g Interface thread M25x0.5 Back focal length* 9.70 mm Flange back distance* 19.47 mm *: value applicable with 1 mm Ge window (not included) Environmental Properties Operating temperature -40 °C to +80 °C Storage temperature -57 °C to +105 °C
