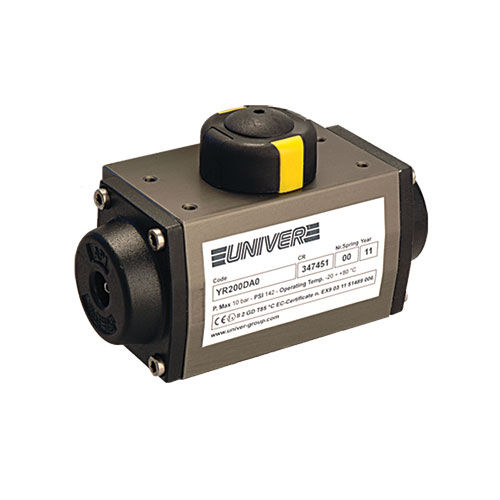

Pneumatic valve actuator YR2 seriesrotarypistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Technology
- piston
- Configuration
- double-acting
- Other characteristics
- NAMUR, for control of shut-off, VDI/VDE 3845
- Torque
Max.: 4,312 Nm
(3,180.37 ft.lb)Min.: 4 Nm
(2.95 ft.lb)
Description
YR2
Pneumatic actuators for process automation
-Pneumatic connections configuration: NAMUR interface - VDI/VDE 3845 -Top pinion: VDI/VDE 3845
-Holes for sensor box connection: VDI/VDE 3845
-Bottom holes for connecting valves: ISO 5211 - DIN 3337
-Single acting actuators available (2-3-4-S-6 springs)
TECHNICAL CHARACTERISTICS
Temperature-20 + 80°C
Fluidfiltered air. lubricated or not. neutral gases
Pressure rangesingle acting: 3 - 8 bar double acting: 2 -8 bar
ConnectionsNAMUR interface (G1/4)
Rotation0 - 90 ± 3’(external regulation)
PressureMax 10 bar
CONSTRUCTIVE CHARACTERISTICS
Bodyhard anodized aluminum extrusion
Pistondie cast aluminium
Piston Bearingacetalk resin
Pinionnickel plated steel
End capsdie cast aluminium
Sealsnitrile rubber
Screws and nutsstainless steel
