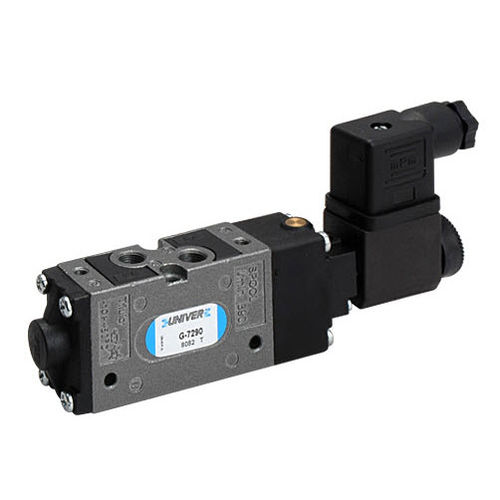

Spool pneumatic directional control valve G7 series
electrically-operated5/2-way5/3-way

spool pneumatic directional control valve
spool pneumatic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
electrically-operated
Ports/positions
5/2-way, 5/3-way
Operating pressure

Min.: 1 bar
(15 psi)

Max.: 10 bar
(145 psi)

Flow rate

860 l/min
(227 us gal/min)

Description

G7 26 mm G1/8 valves and solenoid valves -G1/8 threaded valve body with traditional Univer spool system -Versions available 5/2-5/3 -Aluminium multiple sub-base TECHNICAL CHARACTERISTICS Ambient temperature-10-+45°C Fluid temperaturemax+50°C. Fluid50 pm filtered and not dehumidified air, lubricated or not Commutation systemspool Ways/Positions5/2, 5/3 Pressure10 bar max Controlindirect electro - pneumatic, pneumatic Returnmechanical spring, pneumomechanical spring ConnectionsG1/8 Nominal 06 mm Nominal flow rate860 Nl/min. CONSTRUCTIVE CHARACTERISTICS Valve bodyzamak Sealsnitrile rubber Actuatorstechnopolymer Spoolaluminium ELECTRIC CHARACTERISTICS ElectropilotU1 CoilDA series Power consumption3,5 W (DC) - 5 VA (AC) ConnectorAM-5110 Voltage12 V DC-24 V DC-24 VAC-110 VAC-230 VAC Manual overridewith 2 position screw
