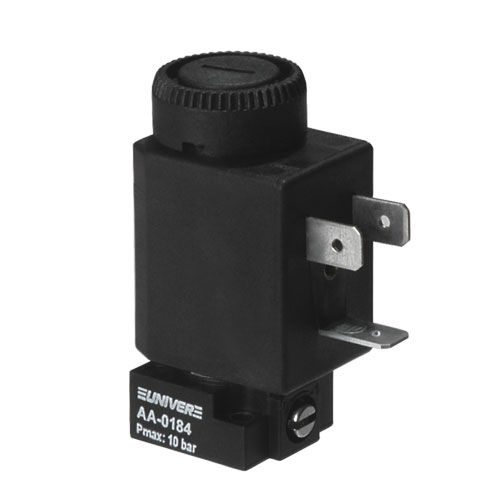

Poppet pneumatic directional control valve AA series

electrically-operated3/22/2

□ Miniature electropilots U1 Direct intervention electropilots with poppet valve system and cushioned bottom seals •Assembly on sub base •Threaded connections on the body -CNOMO interface -Orientable coil (360°) separated from mechanical part -Versions:2/2 3/2NC-NO -Original Univer SPEED modular sub-bases TECHNICAL FEATURES Ambient temperature Fluid temperature Fluid Commutation system Ways/Positions Pressure -10 ++50 *C max +95 ’C 10 pm filtered air, lubricated or not. neutral gases (upon request other fluids can be used) direct intervention poppet valve system with cushioned seals 2/2 NC, 3/2 NC, 3/2 NO1 2/2, 3/2 NC = 0 - 10 3/2 NO = 3 - 10 Controlelectric Returnmechanical spring Connectionson sub-base or with threaded connections on the body sub-baseG 1/8MSCNOMO Nominal 0 (mm)1.2-1.51-1,51-131,2-13 Nominal flow rate (Nl/min)30-6028-6030-6033-45 CONSTRUCTIVE FEATURES Materialssee features below ELECTRIC FEATURES SeriesU1U3 CoilDADC Power consumption3,5 W (DC) - 5 VA (AC)2,5 W (DC)-3,3 VA (AC) ConnectorAM 5110AM 5111 Voltage12 V DC -24 V DC -24 VAC - 110 VAC -230 VAC Protection degreeIP65
