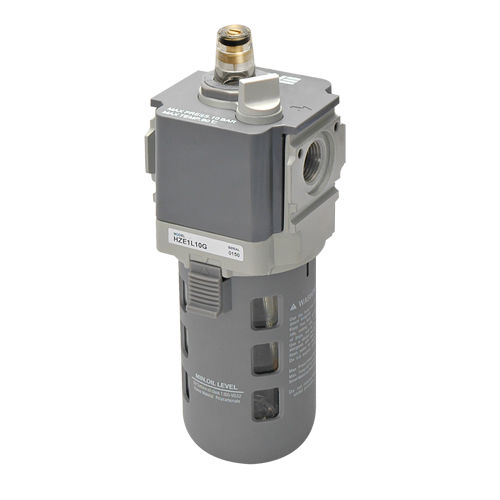

Compressed air lubricator HZE-L series

Add to favorites

Compare this product

Go to the UNIVER Group website for more information

Characteristics

Applications

for compressed air

Flow rate

1,000 l/min, 2,100 l/min, 4,300 l/min
(264.17 us gal/min, 554.76 us gal/min, 1,135.94 us gal/min)

Pressure

Max.: 8.5 bar
(123.3 psi)

Min.: 0.5 bar
(7.3 psi)

Description

Air treatment units New series available in 3 sizes -H2E0 Gl/4*(40 mm) -HZE1 - G3/8'(63 mm) -HZE2 Gl/2*(80 mm) Standard configurations -Filter -Regulator -Lubricator -Filter regulator (FR) -Filter regulator + Lubricator (FR+L) -Filter + Regulator + Lubricator (F+R+L) Integrated square pressure gauge standard supplied (where foreseen) TECHNICAL CHARACTERISTICS Ambient temperature5 -60 °C Fluidcompressed air, with or without lubrication Working pressure0-5-10 bar Max pressure12 bar Size0-1-2 CONSTRUCTIVE CHARACTERISTICS Bodytecnopolymer with metal threaded elements (size 0) die-cast aluminium (size 1 - 2) Knobtecnopolymer Ring nuttecnopolymer Bowlpolycarbonate Bowl guardtecnopolymer (size 1-2) Filter elementsintetic fi bre Sealsnitrile rubber Springssteel Diaphragmfabric reinforced rubber
