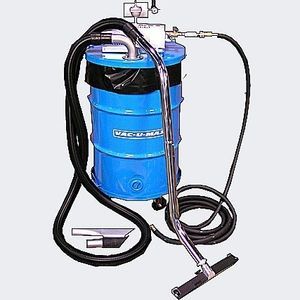

VAC-U-MAX Submerged Recovery Vacuum Cleaner is designed for handling explosive powders and rendering them inert by drawing the powder under a level of fluid - ATEX tested and certified.
STANDARD EQUIPMENT:
Zero maintenance direct drive blower assembly. No Belts! No Lubrication!
PTFE (Teflon-coated) leaf type filter, rated 99.9% efficient at 1.0 micron particle size with manual shaker cleaning. Filter is washable and can be cleaned and reused several times before replacement.
Convenient top access to filter.
Start/stop button, NEMA 4, with thermal overload protection.
Flexible electrical cord, 3 conductor, (without plug) x 25' long.
Interchangeable 18 gal. collection container with wheels and lifting handles.
2 Easy Running Wheels and 2 locking Castor Wheels.
Sound proofing for noise levels of less than 77 dBA @ 3 ft..
2.0" standard inlet with internal deflector.
Complete steel construction for outstanding durability.
TECHNICAL DATA:
Continuous duty vacuum producer
Maximum Suction Power 12" Hg. (162" H20)
Maximum Air Flow 260 CFM
Suction Connection 2.0"
Motor 4.6 HP TEFC
Voltage 230V, 380V, 460V, or 575V 60hz/3 phase (select at time of order)
Capacity of Container 18 gallon
Dimensions 44"L x 21"W x 49"H
Operating Weight 260 lbs.
Standard finish Blue Powder Coat
Terms of Delivery: F.O.B. Belleville, New Jersey
Delivery Time: 3-4 weeks after receipt of order
Terms: Net 30 days from date of shipment
Freight: Collect
Prices are subject to change without notice.
