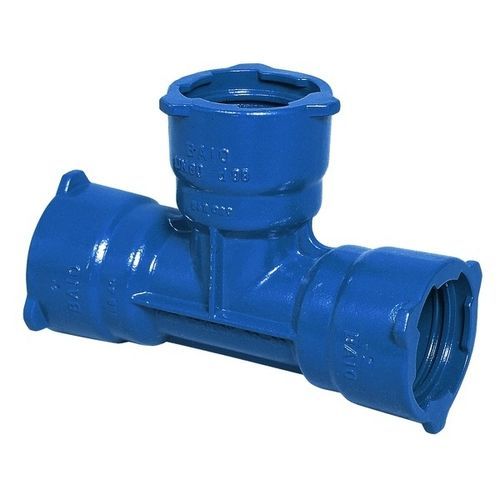

Hydraulic fitting BAIO® MMB
socketTDIN

hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
socket
Configuration
T
Norms
DIN
Material
cast iron
Gender
female
Other characteristics
poppet, standard, corrosion-resistant
Diameter

Min.: 80 mm
(3.15 in)

Max.: 300 mm
(11.811 in)

Operating pressure

16 bar
(232.06 psi)

Description

Fitting with three socket connections for branches. For the connection of VAG BAIO®plus System components and pipe spigot ends. Suitable for use in water distribution applications. Sealing system/standard: Fitting in accordance with EN 546 With 3 socket connections Double function socket type for internal and external bayonet locking acc. DIN 28603 Corrosion-resistant due to boltless connection Pull-out proof due to positive connection and friction-locked connection Short assembly times due to easy assembly or disassembly Stress-free laying due to flexibility of inclination up to +/- 3° Variable use for ductile cast iron pipes or plastic pipes due to easy replacement of sealing ring For branches For connection to VAG BAIO®plus System parts For connection to pipes with spigot ends
