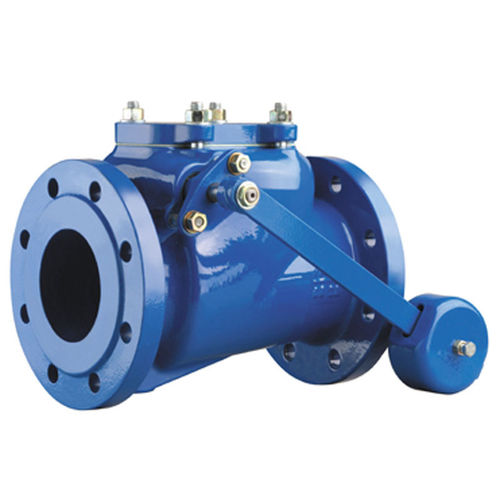

Disc check valve AL
flangefor potable waterfor pipelines

disc check valve
disc check valve
disc check valve
Add to favorites
Compare this product


Characteristics

Type
disc
Body
flange
Applications
for potable water, for pipelines, for water systems
Material
stainless steel, cast iron
Other characteristics
standard, horizontal, seat
DN

Max.: 250 mm
(9.843 in)

Min.: 40 mm
(1.575 in)

Pressure

10 bar, 16 bar
(145 psi, 232.1 psi)

Description

Resilient-seated, straight-seat check valve that opens even at low differential pressures. Low pressure loss above the valve as the disk is located outside the medium. The valve can be installed both horizontally and vertically into the pipeline. If the valve is installed vertically, the flow of the medium must be from the bottom to the top. Suitable for use in water-treatment applications, water distribution and in industry. Sealing system/standard: Resilient seated in accordance with EN 16767 With flange ends on both sides acc. to EN 1092-2 With lever and weight (located on the right in flow direction) Low pressure loss
