Externally controlled, float-operated control valve for the level control of water in tanks. The control characteristic can be adapted to the operating conditions by means of a finely slotted cylinder serving as control insert. Suitable for use in water treatment, water distribution, in power plants, in industry and in pressure management.
Face-to-face length: acc. to EN 558, basic series 1
With flange ends on both sides acc. to EN 1092-2

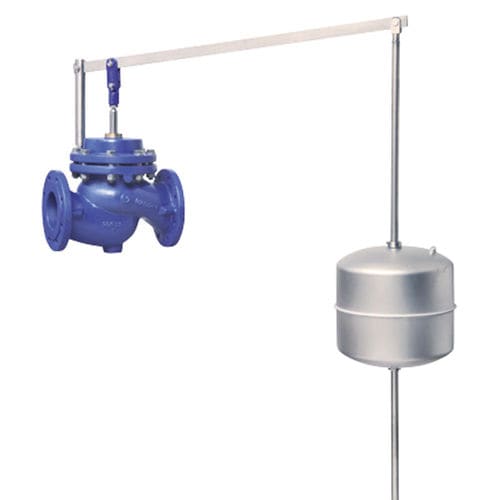

Control valve in globe valve design for level control in water tanks
Chambered and pull-out proof profiled sealing ring
Welded valve seat enhances resistance to wear
Compensation cylinder sealed with a quad ring
Slotted cylinder as standard control insert for cavitation-free regulation
Low actuating torque due to pressure balanced compensation cylinder
Float with parallel guidance
