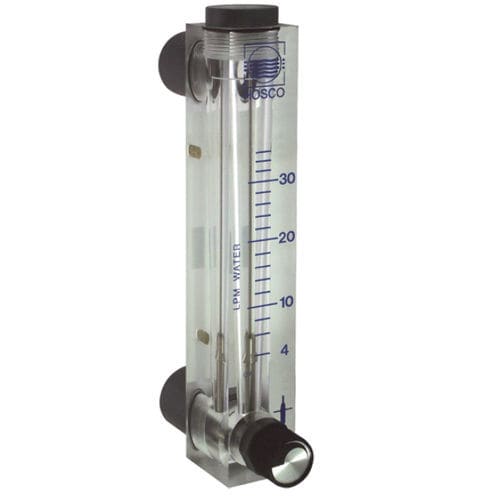

Variable-area flow meter UK series

for liquidsfor gasin-line

● Frontal scale imprint ● Optionally valve ● Installation plate Characteristics A float moves in a transparent conical measurement tube, relative to the flow. The position of the float depends on the volume flow (weight force versus resistance to flow), and indicates the flow rate on the scaled measurement tube. Handling and operation ● Include straight calming section of 5 x DN in inlet and outlet ● If the media are dirty, install a filter Options ● Metering ranges and special scales under defined operating pressures / temperatures ● Seal made of FKM only for brass construction) Ordering information ● Specify direction of flow, medium, and display range. ● For gases, state pressure (relative or absolute)temperature and medium (e.g. air) (request display range)
