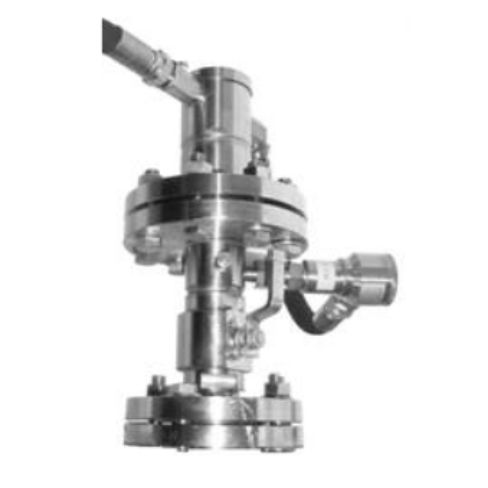

Modbus level transmitter TS02

RS-485for storage tanksIP67

DATA ACQJSmON SYSTEVI DESCRIPTION The AD data Processing unit has to be installed in a panel or in a cabinet placed in a safèjarea protected through active barriers suitable to Harts(FSK ). The SW System allows to set up ail the requiredparameters like zéro, end scale. référence points’ number and position insde the pipe very easily. The output from the AD data Processing unit can be digital (RS-485 MODBUS) or analogue 4-20mA. Required supply is 110/220 Vac. OurCPUunits acquiresup to 5 sonar levels. 10 analog 4-20 mA signais (Température + Pressure) and 16 digital signais for 65% thresholds. Data are then sent to ourmonitorsoftware that display in real time on the monitor the following parameters (reported data are an example).
