Ball valve 274electrically-actuatedcontrol3-piece
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- control
- Body
- 3-piece, stainless steel
- Number of channels
- 2-way
- DN
Max.: 100 mm
(3.937 in)Min.: 25 mm
(0.984 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description

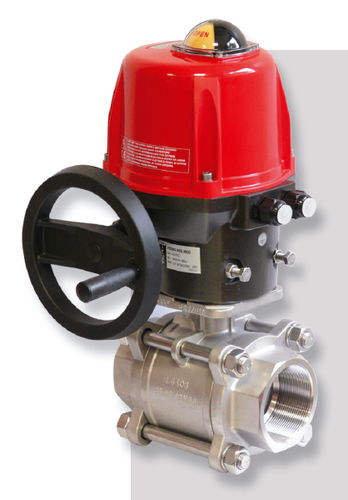

Stainless steel ball valve
FPM O’Ring, PTFE+15% GF seats
BSP threaded end connections (SW and BW on request)
PN63
Working pressure: 16 Bar*
Fluid temperature: -20°C +180°C**
Actuator temperature: VR/VS = -20°C to +55°C (Failsafe : -10°C to +40°C)
Duty rating : 50% (CEI34)
Enclosure: IP67
Electric connections: 2x ISO M20
