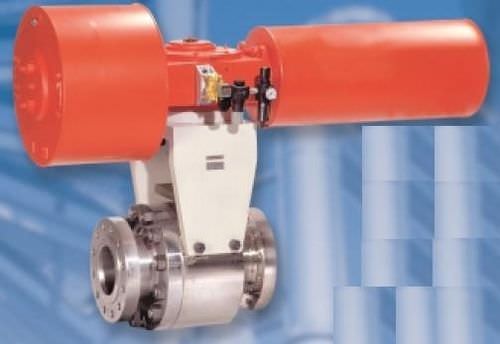

Ball valve

metalexpansionsolids

Features and benefits The Velan Type L High-Temperature Metal-Seated Ball Valve is well suited for a variety of demanding services where high-temperature and abrasive solids are present. ● Unique, patented single-seat ball valve design. The Velan single-seat ball valve has a flat spring set acting through a hardfaced bearing against the bottom ball shaft which provides sufficient initial ball-seat load for valve tightness, even at low delta P. ● The design provides freedom for thermal expansion of the ball without jamming, even at extreme temperatures. ● Proven in qualification tests and field operation to be solids–proof, even for the toughest applications on slurry service with solids. ● Tightness rates: Allowable leakage rate at full delta P: ASME/ FCI 70-2 Class V. Tighter shutoff available upon request. ● Max. operating temperature: CF8M valves: 1,450°F (788°C). WCB valves: 800°F (426°C). Chrome Moly C5 or C12: 1,000°F (538°C). ● Wall thickness complies with ASME B16.34.
