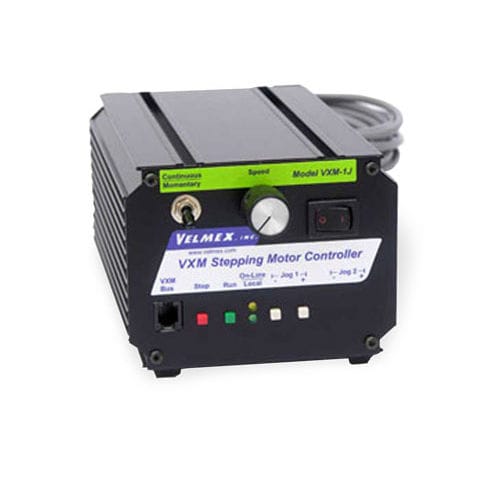

Stepper motor controller / AC / single-axis
VXM-1J VELMEX, Inc.

Characteristics

  • Motor type:

    stepper

  • AC/DC:

    AC

  • Other characteristics:

    single-axis

Description

The VXM-1J is a jog and autoreverse single axis stepping motor controller. Speed is adjusted with a potentiometer - a computer is not used.
It is the ideal controller for:
- simple, variable speed motion
- precise movement between two teachable points

It features:

100% standalone operation (no computer required)
Automatic reversing
Variable or fixed speeds each direction
Low cost

Automatic referencing to limit switch for absolute repeatability
Speed ratio 6000:1
Auto reverse teach for start point, reverse point, and speed
Switch less reversing for longest cycle life & highest accuracy

Trigger pulse output at reversing points
Precise, digitally controlled speeds
Can be reconfigured for different size motors
Auto-detects presence of (N/C to run) limit switches
