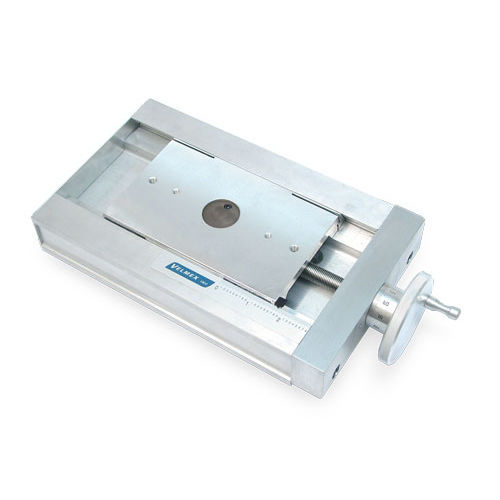

Ball bearing linear slide UniSlide®A60aluminum
Add to favorites
Compare this product
Characteristics
- Type
- ball bearing
- Other characteristics
- aluminum
- Load
109 kg
(240.3 lb)- Stroke
Max.: 106.7 cm
(42 in)Min.: 7.6 cm
(3 in)- Working temperature
Max.: 82 °C
(179.6 °F)Min.: -18 °C
(-0.4 °F)
Description
The A60 Series UniSlide stage has a body width of 6 inches, slider length of 6 inches carrying a 240 lbs. horizontal load. The A60 can travel up to 42" with the 6" slider/carriage. The A60 is very versatile for a variety of applications.
A60 Series UniSlides are comprised of an aluminum alloy extruded dovetail base with 60 degree opposing V-type ways. An aluminum alloy carriage that runs in the dovetail ways of the base. Lead screws are constrained and supported with steel thrust bearings and snap ring retainer. The lead screw drive nut is a tension adjustable nut made of Delrin providing low friction, and minimal backlash.
The A60 Series UniSlide is available in 6 models/styles. Seven lead screw pitches are available along with rapid advance configurations.
