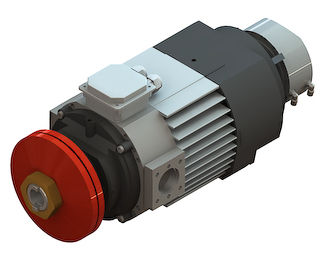

AC motor / three-phase / asynchronous / 50V
MECRS series VEM

Characteristics

  • AC/DC:

    AC, three-phase

  • Type:

    asynchronous

  • Voltage :

    50V

  • Power:

    Min.: 10 kW (13.41 hp)

    Max.: 35.6 kW (47.74 hp)

Description

Spindle units MECRS : low profile asynchronous three-phase electric motors for cutting and routing operations series MECRS
- Air cooling through separately driven fan (patent pending)
- Tool attachment MAS BT 40, ISO 40 or ISO 50
- Max. speed 6.000 rpm (7.000 rpm for type 105 ISO 40)
- Pneumatic tool change (or hydraulic ISO 50)
- Revolving sleeve for the water passage
- By request: Orientation through magnetic encoder,
different power and polarities
Features and overall dimensions are subject to change.
Varnishing by request.
