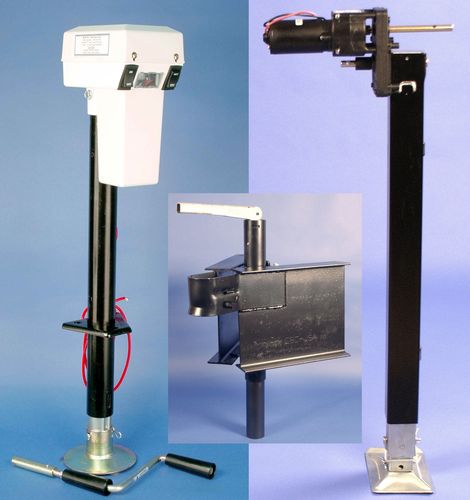

Rack jack RVTJ series

mechanicaltrailersteel

At the time of hitching your travel trailer onto your RV, you must ensure that it is perfectly aligned and on the same level as your vehicle. A tongue jack performs this exact function for you. By using the device, you can effort essly raise or lower the trailer from underneath to ensure an easy hitching or unhitching process. Purchase the right power tongue jack for your trailers or campers at Venture Mfg. Co and gain a good return on your investment. Power Tongue Jack Specifications Venture’s Power Tongue Jack is available for varied industrial applications in the below listed specifications. We can also fulfill your custom requirements by incorporating preferred features, specifications and options. (Contact our customer care executives to know more about our custom fabrication capabilities) Dynamic Load - 2,500 lbs / Static Load - 5,000 lbs Duty Cycle - 20% Speed @ Rated Load - 10 IPM; @ 1,000 lbs - 11.5 IPM; @ no load - 13 IPM Manual Crank Torque @ Rated Load - 160 in-lbs Max Amps @ Rated Load - 30 Amps (typical) 30 Amp Fuse Protected Specialized Features and Benefits Power Tongue Jack Features Power Tongue Jack from Venture has become a huge success since its entry into the market; thanks to its innovative design, robust construction and extreme operational excellence.
