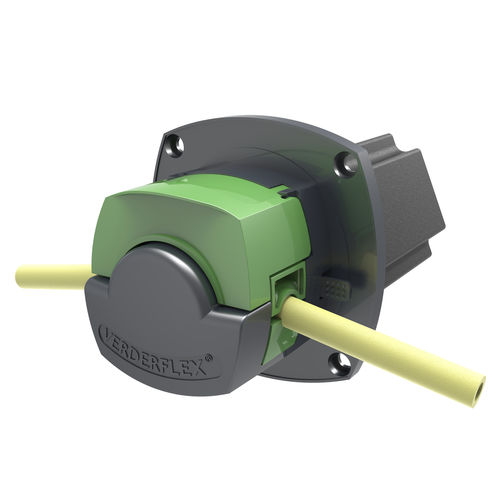

Water pump Steptronic Mini-Load

for chemicalsfor food productsfor lubricants

The new Steptronic range is designed to operate as either a panel mounted or "stand alone" OEM cased unit. The Steptronic features an accurate, high resolution, integrated stepper drive which is suitable for continuous duty and critical "multi-cycle" OEM applications. The Verderflex Steptronic Mini-Load pump is highly adaptable, operating at a flow rates of 0.1 to 380 ml/min, with a class leading 4096:1 turn down ratio and speeds in excess of 400 RPM. Steptronic has multiple AC & DC input power options and can be controlled remotely by digital, analogue and HMI signals including 4-20mA and 0-10V. Steptronic has a wide range of accessories and options including IP66 rating, special casings, remote power packs, foot switches and the option for factory programmed custom configured speed, torque and ramp settings. The new "Mini-Load" is very sleek and compact in size with a number of features including the latest 4 roller design, unique tube clamp inserts, dual stackable/multiple pump head facility all with quick tube release functionality. Features and benefits: - Quick release, compact tube head - 4096:1 turn down - 0.1% speed accuracy - Programmable speed range - Built in electronic controller
