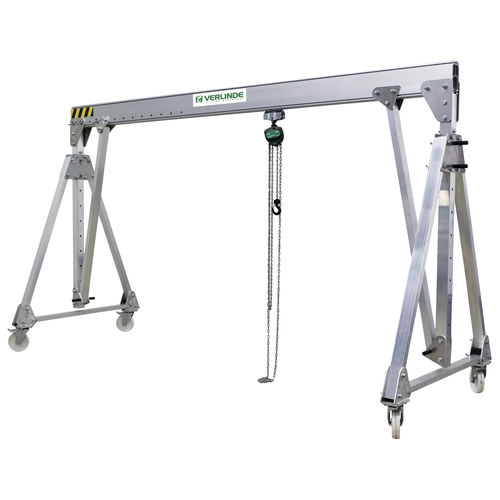

Mobile gantry crane VGPA series
for workshopsaluminum

mobile gantry crane
mobile gantry crane
mobile gantry crane
Add to favorites
Compare this product


Characteristics

Mobility
mobile
Other characteristics
for workshops, aluminum
Lift capacity

Max.: 2,000 kg
(4,409.2 lb)

Min.: 250 kg
(551.2 lb)

Working height

3,200 mm
(125.98 in)

Description

Range of aluminium hollow profile gantries for loads of 250 to 2,000 kg With this line of VERLINDE independent manual gantries, maintenance services, assembly teams and any artisan mechanic will be able to carry out mounting, dismounting operations, and position parts or assemblies. This line of standard gantries is designed to receive all types of hoisting device. The VERLINDE gantry can be equipped with manual or electrically-powered chain tackle. Technical Characteristics The characteristics of these gantries are identical to those of the standard profile model except for the following : • - The raceway of these VERLINDE workshop gantries consists of a EUROSYSTEM hollow profile in aluminium • - The gantry is delivered with a manual hoist-bearing EUROSYSTEM type trolley • - These workshop gantries are mounted on caster wheels in white polyamide • - The gantry can be shifted under load • - Legs can be folded for handling. Lift height and span can be adjusted by an operator alone
