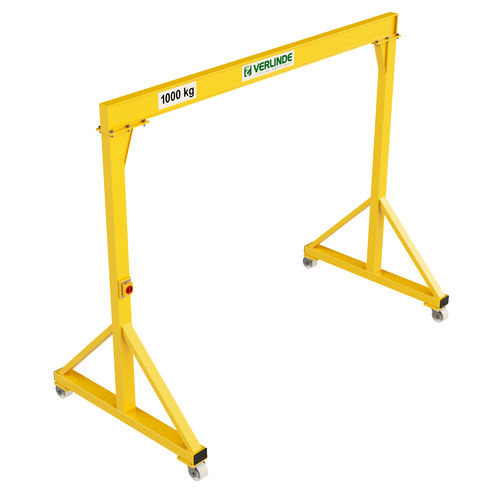

Mobile gantry crane VGI
for workshopssingle-girder

mobile gantry crane
mobile gantry crane
mobile gantry crane
Add to favorites
Compare this product


Characteristics

Mobility
mobile
Other characteristics
for workshops, single-girder
Lift capacity

Min.: 250 kg
(551.2 lb)

Max.: 5,000 kg
(11,023.1 lb)

Description

Range of I-beam gantries for loads of 250 to 5,000 kg With this line of VERLINDE independent manual gantries, maintenance services, assembly teams and any artisan mechanic will be able to carry out mounting, dismounting operations, and position parts or assemblies. This line of standard gantries is designed to receive all types of hoisting device. The VERLINDE gantry can be equipped with manual or electrically-powered chain tackle. Technical Characteristics • - The extreme mobility and stability on all surfaces provided by means of four caster wheels fitted with ball bearings on the shafts and king pins. These wheels formed from acetyl resin have excellent shock behaviour and ability to withstand attack by chemicals • - The raceway is a weld-fabricated IPE profile designed to accommodate a lifting and traversing movement device, with two traversing breast-pieces. The unit is finished in RAL 1028 polyurethene lacquer. Fully dismantlable, the VERLINDE independent gantries adapt to your need to make best use of workshop space • - The gantry is delivered disassembled, together with its galvanised boltwork and takes little time to assemble and commission • - A 3-piece dismounted weld fabricated package • - The gantries can be moved loaded on a smooth, clean floor
