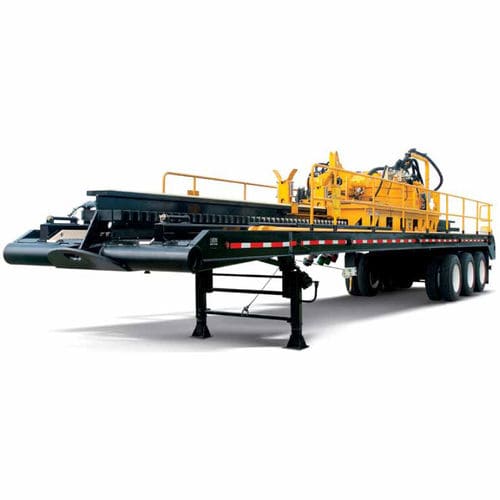

Horizontal directional drilling rig D1320X900 HDD
truck-mountedrotaryCaterpillar

horizontal directional drilling rig
horizontal directional drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
horizontal directional
Mobility
truck-mounted
Drilling unit
rotary
Engine model
Caterpillar
Other characteristics
hydraulic
Overall length (working)

15 m
(49'02" )

Overall width (working)

3 m
(9'10" )

Overall heigth (working)

4 m
(13'01" )

Machine weight

45,812.8 kg
(100,999.9 lb)

Motor power

596.6 kW
(811.15 hp)

Description

Maximize your drilling muscle with the field-tested D1320x900 Navigator® horizontal directional drill. Maximize your drilling muscle with the field-tested D1320x900. Loaded with feature after feature to improve performance, reliability and durability, the D1320x900 is equipped with dominating twin Caterpillar C-27 engines, producing a maximum of 102,500 ft-lb (138,971.6 Nm) of rotational torque and 1,360,000 lb (616,885.7 kN) of thrust/pullback. FEATURES & BENEFITS High-torque, low-speed Hagglunds hydraulic motors Operates efficiently with high-torque, low-speed Hagglunds hydraulic motors powering the rotary and carriage drives so you can run full torque and full rotary rpm simultaneously. Thrust box bearing-pack assembly Reduces stress on the motor, because the thrust box bearing-pack assembly is designed to absorb the axial load caused by thrust and pullback. Floating vise Helps prevent rod wrap or windup because its floating vise allows the breakout system to clamp the full rod upsets during breakout of the lower and upper joints. Higher torque Muscles through difficult ground formations with higher torque than other models.
