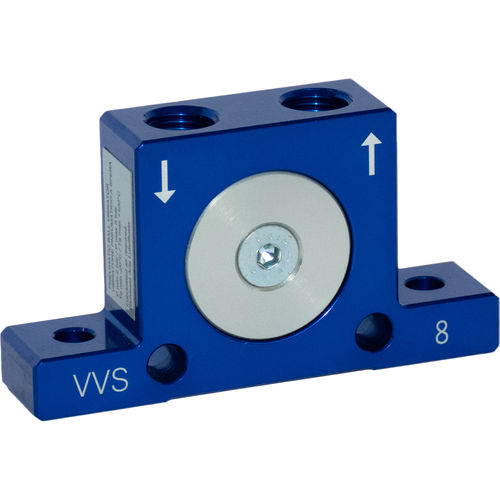

Pneumatic vibrator VVS 08
rotaryballfor hopper

pneumatic vibrator
pneumatic vibrator
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
rotary, ball
Product applications
for hopper, for concrete, for process water treatment units, for rubber and plastic applications, for glass working, for dairy products, for chemicals, for pipelines, industrial, for the pharmaceutical industry, conveying, for empty container, distribution, for paint, for mills, for granulates, slide, canning industry, for mining equipment, building, for bulk materials, for dry food, for the food industry, cement, construction, for concrete mixers, powdered fertilizer, for asphalt, for ceramics, filtration unit, for dispensers, liquid fertilizer, for marble, for powders, incineration, solid waste, feeder, for conveyors, for biomass
Other characteristics
aluminum
Force

101 N, 203 N, 281 N

Rotational speed

20,520 rpm, 29,100 rpm, 34,260 rpm
(128,931 rad.min-1, 182,840.7 rad.min-1, 215,261.9 rad.min-1)

Description

Our ball vibrators lineup features 8 devices able to deliver an economic but effective solution when generic vibration is required. • Economic • Long lasting • Easily adjustable rpm The particularly refined machining process allow our ball vibrators to last longer than average in the industry, providing a safe and constant vibration to the machine to which they are attached. Steel hardened tracks are machined to give the least friction surface to the sphere that rotates on them, delivering a low-noise vibration. Requirements Lubricated and filtered (≤5μm) air is required Operating pressure : from 2 to 6 Bar Operating ambient temperature: -20°C to 100 °Cwe
