Product description
The control system of artificial vision is based on a concept, modular and expandable, for the verification of the quality of plastic bottles and the management of the production.
The artificial vision inspection system provides the inspection of the finish/seal, the base and the lateral side of a lot of
different kind of plastic bottles of different size and shape, as well as translucent, opaque and colorized.

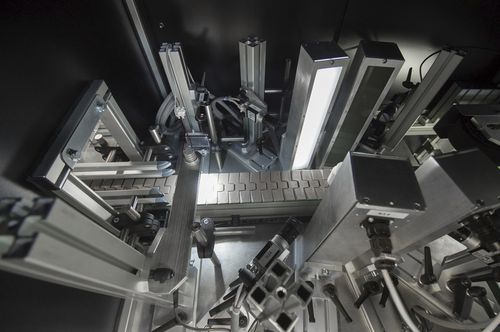

The innovative electro-optical solution, based on several modular high resolution color cameras, in conjunction with
a dedicated lighting units, starting from the inspection with a single camera of just the mouth, until the inspection with
seven cameras for the whole coverage of the bottle.
The special software tools are able to:
- measure the shape, the diameter of the mouth and/or of the base;
- detect the typical cosmetic defects as contamination, flashes, folds, black and opaque points, shape error or deformation and the presence of the sprue outside or inside the bottles;
- label and graphic analysis in order to detect error of the label position, partial or total missing decoration, scratches, color variation and dirty presence.
