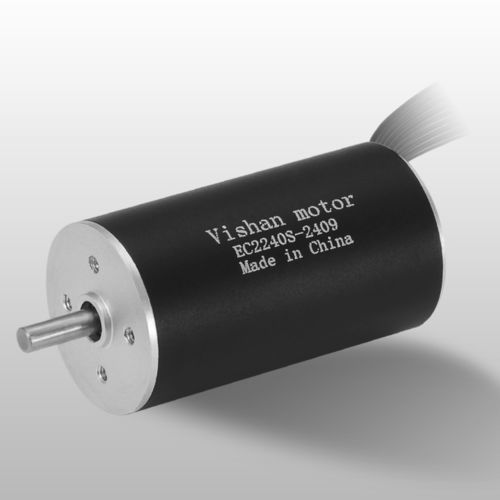

DC motor EC2240 seriesbrushless24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 12 V, 36 V, 30 V
- Configuration
- aluminum, slotless, hollow-shaft
- Number of poles
- single-pole
- Applications
- for pumps, for medical equipment, blower, for robotics, for power tools
- Other characteristics
- high-efficiency, high-torque, low-noise, high-power
- Power
18 W
(0.024 hp)- Intensity
Max.: 12,600 mA
Min.: 73 mA
- Torque
0.012 Nm, 0.0785 Nm, 0.0828 Nm, 0.0839 Nm, 0.0852 Nm
(0.0089 ft.lb, 0.0579 ft.lb, 0.0611 ft.lb, 0.0619 ft.lb, 0.0628 ft.lb)- Rotational speed
Max.: 35,000 rpm
(219,911.49 rad.min-1)Min.: 14,128 rpm
(88,768.84 rad.min-1)- Diameter
22 mm
(0.87 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Vishan motor group is always well prepared to delivery our best service via such downsize and optimize brushless slotless DC motor, our Efficient work will assistant you to find the right solution from our products
Configuration:
With or without Hall sensor
Performance: Customized in the continuous operating range
Ball bearing: Preload
Flange: Standard frange front&back/customize the frange
Shaft: Length/Diameter/Cut face/double shaft/hollow shaft
Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length
Connector: JST/MOLEX/TE
