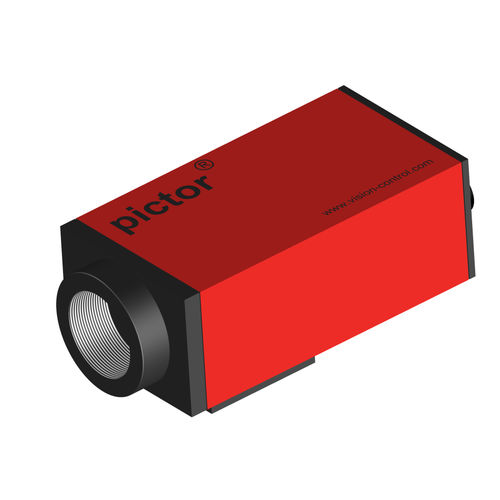

Industrial camera pictor® M16 seriesmachine visionIRmonochrome
Add to favorites
Compare this product
Characteristics
- Applications
- industrial
- Function
- machine vision
- Spectrum
- IR, monochrome
- Sensor
- CCD
- Interface
- Ethernet
- Resolution level
- HD
- Other characteristics
- smart, with global shutter, compact, robust
Description
pictor M1606M-ETH-IRCut
Short description: smart camera, eth., SVGA-Out, 1/3" CCD, 640x480, mono, 63fps, TI-400MHz, IR cut fil.
Order number: 4-20-193
EAN:4251692612071
pictor M1617M-ETH-IRCut
Short description: smart camera, eth., SXVGA-Out, 1/3" CCD, 1024x768, mono, 20fps, TI-400MHz, IR cut fil.
Order number: 4-20-195
EAN: 4251692612095
pictor M1617M-ETH-CLR
Short description: smart camera, eth., SXVGA-Out, 1/3" CCD, 1024x768, mono, 20fps, TI-400MHz, clear glass
Order number: 4-20-196
EAN: 4251692612088
pictor M1606M-ETH-CLR
Short description: smart camera, eth., SVGA-Out, 1/3" CCD, 640x480, mono, 63fps, TI-400MHz, clear glass
Order number: 4-20-194
EAN: 4251692612064
Characteristics
• smart camera for industrial image processing
• powerful image processing with DSP for extremely rapid image acquisition and processing
• SVGA out for the output of test images on the monitor without loss of runtime
• consistent functional and operating concept, range of functions is compatible with vicosys® vision systems
• extensive optics and lighting accessories
