Industrial camera VEO 640 series
for the automotive industryfor scientific applicationsfor military applications

industrial camera
industrial camera
industrial camera
industrial camera
industrial camera
industrial camera
industrial camera
Add to favorites
Compare this product


Characteristics

Applications
industrial, for the automotive industry, for scientific applications, for military applications
Technology
digital
Function
monitoring
Spectrum
full-color
Sensor
CMOS
Interface
Ethernet, HDMI
Resolution
4 Mpx
Other characteristics
high-speed, megapixel, rugged, programmable, compact

Description

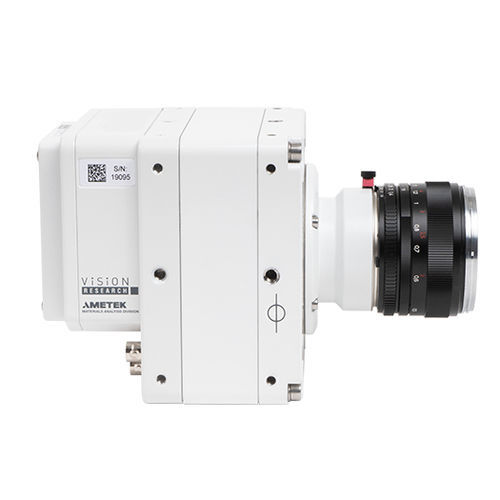

The VEO 640 combines the benefits of four-megapixel imaging with high frame rates in a compact and rugged body. Available in two styles, L (light) and S (full) the camera is used in a wide variety of applications due to features that accommodate the needs of both scientific and media industries. The Phantom VEO 640 is a 6 Gpx/s throughput high-speed camera ideal for HD capture and scientific image techniques. The proprietary 4 Mpx 35mm CMOS sensor strikes the perfect balance between increased image data and light sensitivity. Camera flexibility is increased through interchangeable lens mounts. Operators can choose between Nikon, PL, C and Canon EF (with electronic control). The VEO 640 housing is milled from solid aluminum keeping the design lightweight and compact at only 5 lbs/2.3 kg and features a dust-sealed electronics compartment. This is an important feature for harsh environments to ensure the sensor and internal components are protected and to help ensure long-time reliability. With two body styles there is something for everyone. The S-model boasts a variety of options to increase durability and flexibility. On-camera controls for remote and un-tethered recording, ruggedized connectors, added battery input, and the removable CFast 2.0 media are S-model features that makes on-location workflow much more convenient. The L-model is designed for the lab, ideal for software-based imaging without unnecessary features. Key Features •SDI and HDMI video outputs •S-Model Includes: -CFast 2.0 media -12V battery input -On-camera controls •Programmable I/O - define camera signals •10Gb Ethernet Option •Cine Raw file format
