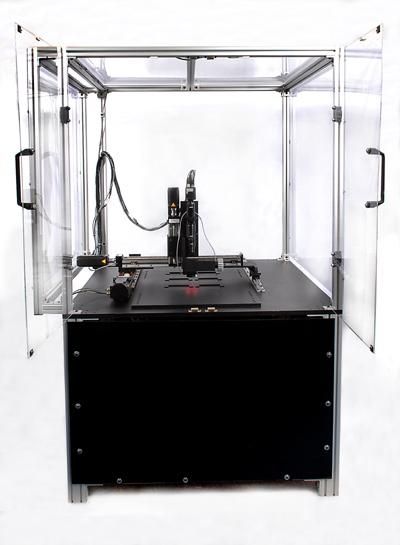

Non-contact non-destructive inspection system

VisionGauge® Online High-Speed AOI systems are perfect solutions for demanding high-throughput, high-resolution applications.
These systems are perfect for a wide range of applications including MicroElectroMechanical systems (for MEMS inspection or MEMS measurement), semiconductor & discrete device inspection and measurement.

These are multi-processor based automated inspection systems that support concurrent image analysis and stage motion.

-Complete, fully-contained, self-standing unit.
-Full gantry configuration (i.e. the camera moves over the parts; the parts themselves do not move).
-Available with high-speed 240 VAC servomotor motion system.
-Available in a wide range of travels, short and long.
-Available with application-specific camera / optics / illumination module.
-Available with a resolution as fine as 0.1 micron.
-Optional LASER module for laser profiling is also available.
-Easy to use, easy to program, fully automated inspection system.
-Inspection and measurement programs (i.e. "recipes") are easily created and modified using intuitive Graphical User Interface. Programs can be saved to disk and read-in later on.

These systems have a wide range of tools for:

Defect detection, Color verification, Pattern matching, High-accuracy measurements, Object counting & sizing, Assembly verification, Image analysis,
Blob analysis, Presence/absence detection, Optical character recognition, Optical character verification, etc.
