Mass tester 930i series

electrically-driven

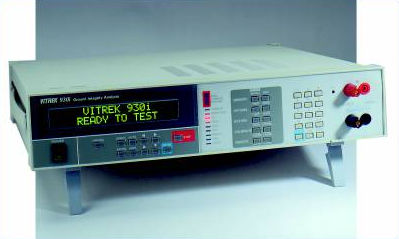

930i Ground Bond Tester and AC Low-Ohm Ohmmeter Depend on Vitrek’s 930i, Ground Bond Tester and AC Low-Ohms Ohmmeter, for all of your programmable or manually operated electrical safety compliance tester needs for testing high current ground bond integrity, ground bond resistance, earth ground continu - Programmable Test Current to 40 Amps - 50-400Hz Programmable Current Frequency - Local/Computer Programmable - Programmable Resistance Limits - Programmable Test Time Durations - AC Ohmmeter to 10uΩ Resolution - Tests to UL/IEC Specifications Certified to EN61010 Programmable Features (VICL and serial com standard, PLC optional) The Vitrek 930i Ground Bond Tester features front panel or remote computer programmable control of test current amplitude and frequency and test time duration to test the ground bond integrity and continuity of the Device Under Test (DUT). The current may be front panel or remotely programmed from 3 amps to 40 amps, from 50-400Hz and from 1-9999 seconds for DUT testing in compliance with UL and IEC specifications.
