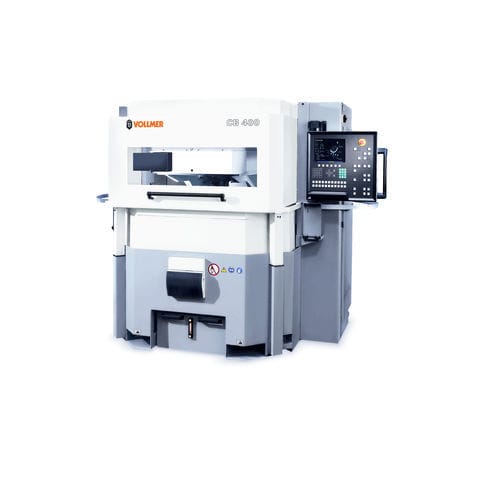

Blade sharpening machine CBF 400

CNC

PRODUCTION LINE FOR SHARPENING CARBIDE-TIPPED BAND SAW BLADES FOR HIGHLY PRECISE COMPLETE MACHINING Carbide-tipped band saw blades are finding more and more uses in the metal-cutting industry. The highest standards are placed on the accuracy of tooth geometries. As a market leader in sharpening machines for carbide-tipped saw blades, VOLLMER has now developed a new range of machines for precise sharpening of these band saw blades with a blade width of up to 150 mm. It consists of the following machine types: CB 400 CNC-controlled automated sharpening machine for tooth top and straight tooth face grinding CBF 400 CNC-controlled automated sharpening machine for tooth flank grinding on both sides The machining tools are usually linked together to form a line and the strip stock to be machined is fed from the coil and finish-machined. YOUR MAIN ADVANTAGES AT A GLANCE Particularly stable machine construction, essential for maximum precision All functions are CNC-controlled Vollmer PMC multiprocessor control Greater flexibility due to the integrated measuring sensor Simple operator prompts on the LCD colour display, supported with graphics CB 400 with the option of automated machining of the hollow face or chip breaker Bevel grinding option Excellent sharpening results using grinding oil as coolant WORKPIECE DATA BAND SAW BLADES Band saw blades with blade width 12 - 150 mm Band saw blades with blade thickness 0,5 - 2,0 mm TOOTH GEOMETRY Hook angle -25° - +25° Axis angle ≤ 30° Clearance angle 0° - +25° Bevel angle ≤ 60° Tooth pitch 4,2 - 200 mm TOOLING DATA SPEEDS Grinding speed 0.1 - 20 mm/s
