CNC punching machine / profile / shearing / drilling

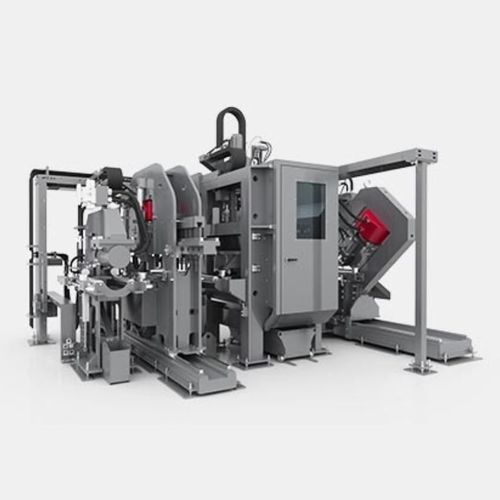

Voortman V550-7 Voortman Steel Machinery



  • Control:


  • Product handled:


  • Associated function:

    shearing, drilling, tapping

  • Other characteristics:



Increased output without compromising production by using the fastest flat and angle processing machine in its range. The Voortman V550-7.
In order to improve the diversity and speed of your production, Voortman has designed a flat and angle processing machine, which is completely CNC controlled. The V550-7 is able to process flat steel profiles up to 500 mm / 19-5/8″ and angle lines up to 200 mm / 8“. The processing differs from both horizontal and vertical punching, carbide drilling, thread tapping, countersinking and miter shearing up to 45° in both directions. The Voortman V550-7 flat and angle machine is equipped with a high speed hydraulic numbering unit for piece identification while leaving all layout marks to the scribing tools.
The new robustly designed the V550-7 CNC machine is a combination of optimized mechanisms and intelligent software that complements your workshop.
