Single-stage Venturi ejector GV series

single-stage Venturi ejector
single-stage Venturi ejector
Add to favorites
Compare this product


Characteristics

Number of stages
single-stage
Ultimate vacuum

Min.: -85,000 Pa
(-12.33 psi)

Max.: -60,000 Pa
(-8.7 psi)

Flow rate

1 m³/h
(35.31 ft³/h)

Description

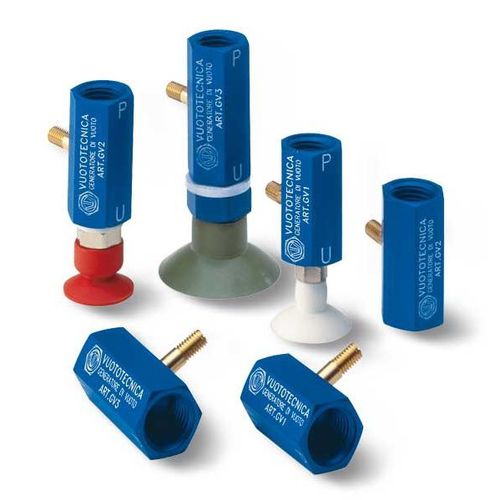

These vacuum generators also operate based on the Venturi principle. The feature that distinguishes them from classic vacuum generators are the two air supply and the vacuum connections, located on the same axis, while the connection relative to the intake-air discharge and exhaust air connections are set orthogonally to them. The advantages of this configuration are less bulky dimensions, easy assembly, and ease of maintenance. These vacuum generators can be assembled directly onto the vacuum cup supports or on cup holders. They are fully made with anodised aluminium, except the exhaust nozzle which is made with brass.
