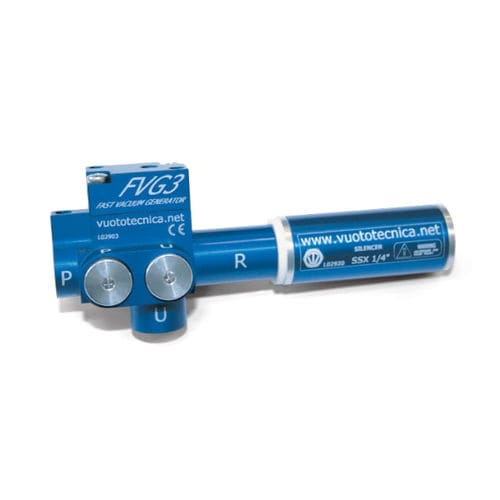

oil-free Venturi ejector / single-stage
FGV3, FGV5 VUOTOTECNICA

{{requestButtons}}

Characteristics

  • Lubrication:

    oil-free

  • Number of stages:

    single-stage

  • Flow rate:

    Max.: 5 m³/h (176.57 ft³/h)

    Min.: 3 m³/h (105.94 ft³/h)

  • Ultimate vacuum:

    -85,000 Pa (-12.33 psi)

Description

These single-stage vacuum generators come with FVG 3-5 ejectors (optional). Maximum supply pressure is 4bar and maximum vacuums generated is -85KPa. The pumps give highly efficient performances even if supply pressures are minuscule. The pumps are extremely cost-efficient and consume less energy. They are easy to install, lightweight and manufactured from anodized-aluminum. Capacities are 3-5mc/h.
