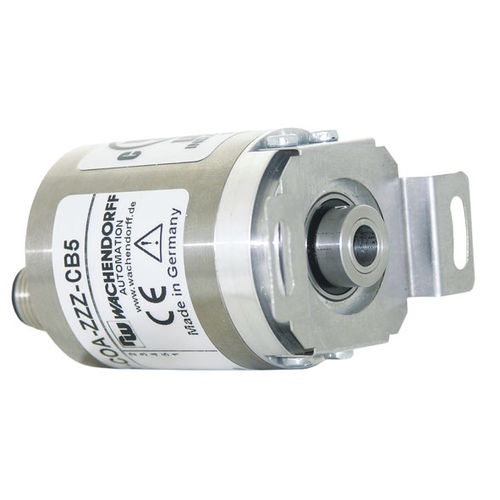

Absolute rotary encoder WDGA 36E

magnetic16-bit32-bit

Absolute encoder, magnetic, CAN SAE J1939 hollow bore (blind) Highlights • EnDra® Multiturn Technology: maintenance-free and environmentally friendly • CAN SAE J1939 protocol • Forward-looking technology with 32 Bit processor • 2-colour-LED as indicator for operating condition Product details Flange hollow shaft (blind-bored) steel case chrome-plated, magnetic shielding Resolution Single-turn Resolution 65.536 steps/360° (16 bit) Insertion depth min.: 8 mm Insertion depth max.: 17 mm Max. Permissible shaft loading radial: 80 N Max. Permissible shaft loading axial: 50 N Insertion depth min.: 8 mm Insertion depth max.: 17 mm Max. Permissible shaft loading radial: 80 N Max. Permissible shaft loading axial: 50 N Max. operating speed Current consumption: typ. 50 mA Power consumption: max. 0.5 W
