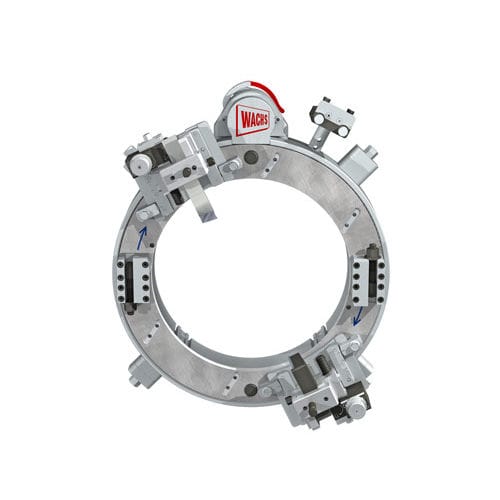

Steel pipe cutter DynaPrep™ MDSF 206
orbitalhandheld

steel pipe cutter
steel pipe cutter
steel pipe cutter
steel pipe cutter
steel pipe cutter
Add to favorites
Compare this product


Characteristics

Tube material
steel
Specifications
handheld, orbital
Tube diameter

Max.: 152 mm
(6 in)

Min.: 51 mm
(2 in)

Description

DynaPrep MDSF Split Frame 206 2in-6in OD (DN50 - 150) Base Kit, rotating split ring style OD mounted machine tool, is designed to perform as an inline Pipe cutter - (parting), double parting (utilizing two cutting blades) or simultaneous cold cutting and beveling of inline pipe and elbows as an inline Pipe beveler, beveling, compound beveling, and creating J-Preps with specific radius and precise lands, ideal for weld preparation Pipe End Prep Counterboring of inside mating surfaces prior to welding as a Flange Facer to face smooth flange surfaces, record groove flanges, and plunge cut RTJ ring grooves Heavy Wall pipe machining up to a 2.5in (63mm) wall thickness The DynaPrep MDSF Base kit includes most commonly specified components, just add a drive motor and tooling. Less expensive and easier than ordering components ala carte, these base model MDSF Kits are ideal where multiple ring sizes for varying pipe diameters are required onsite. Kit is complete with DynaPrep Model 206 Rotating Ring Set 6B Spline Drive Pinion Housing (2) Rapid Adjust 1.5in Stroke Tool Slides with no-time starwheel feed Indexed Trip Assembly Spare Fastener Kit Operating hand tools Storage Case Operating Manual

VIDEO
