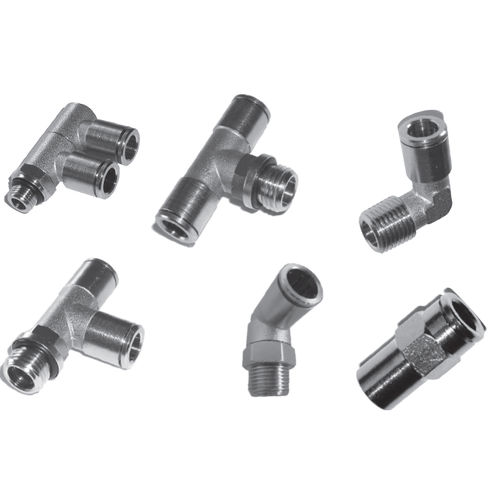

Pneumatic fitting RO series
screw-inelbowpolyamide

pneumatic fitting
pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
screw-in
Configuration
elbow
Material
polyamide, polyurethane, NBR, brass, stainless steel
Gender
male, female
Diameter

0.5 in

Operating pressure

16 bar
(232.06 psi)

Description

TECHNICAL DATA Material Body and thrust ring: nickel plated brass Thread Metric, taper and parallel Seal NBR rubber Clamp Stainless steel AISI 316 Size M5 ÷ G 1/2 Fluid Air, water, oil, steam Working temperature - 20 ÷ +70 °C Max. pressure 16 bar Permissible tolerances Polyamide PA11 - PA12 Polyurethane PU Outside tube diameter Outside tube diameter tolerance Outside tube diameter Outside tube diameter tolerance 4 - 8 mm 0,1 -0,1 4 - 8 mm +0,1 -0,1 10 - 22 mm 0,15 -0,15 10 - 14 mm +0,15 -0,1
