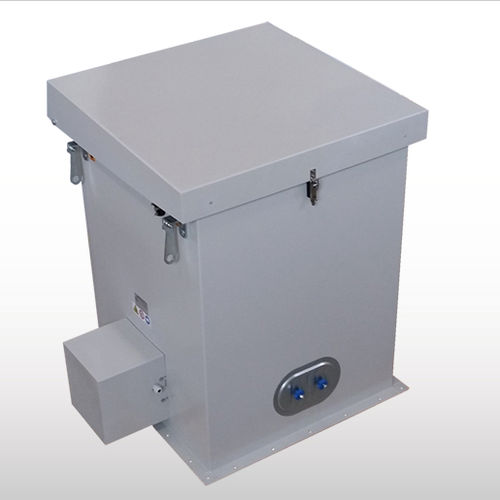

Dust filter DUSTSHAKE R03

multi-bagfor chemical applicationsfor dust collectors

For venting applications in absence of compressed air, the DUSTSHAKE R03 filter represents a reliable cost-effective solution. The DUSTSHAKE R03 Dust Collector has been designed for installation on top of bins or silos, which are pneumatically filled by tankers. DUSTSHAKE R03 has a polygonal casing and square bottom flange. It contains a vertically mounted multi-pocket filter element, which is intermittently cleaned by an electric shaker. A hinged top cover made of steel allows easy, quick, user-friendly maintenance. Dust is separated from the dirty air flow by means of a multi-pocket filter element. An electric shaker, which is fixed laterally on the bottom of the casing, shakes the filter ele­ment at intervals to remove the dust from the media. The dust drops back into the silo, bin or hopper. Shaker cleaning may only be operated after pneumatic filling has been terminated. DUSTSHAKE R03 is designed for venting applications only. • Filter surface: 17 m² (183 sq ft) • Multi-pocket filter element • Mechanical shaker cleaning • Hinged top cover for quick filter element replacement • Removable front panel for comfortable inspection of filter media • Easy to install
