Pneumatic fitting GT

quickEPDMsilicone

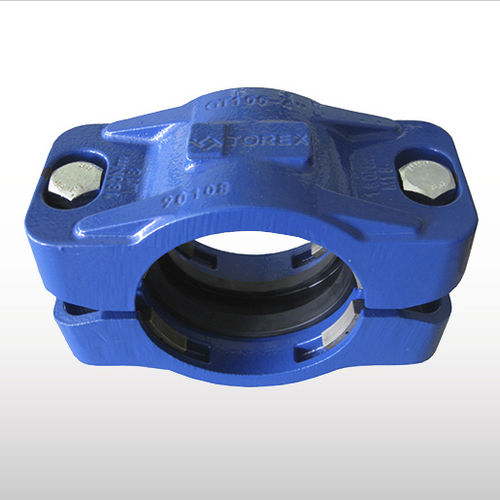

GT Couplings are designed to join together two plain pipe ends on the same horizontal axis in a safe, quick and rigid way. GT Pipe Couplings consist of two cast iron semi-casings with heavy-duty jaws set into the casing halves to secure the pipes together in a safe, quick and rigid way. The two semi-casings are joined together by strong bolts and nuts positioned on the two ends. Sealing is ensured by gaskets made from EPDM or food-grade SILICONE. GT Couplings are designed to join together two plain pipe ends on the same horizontal axis in a safe, quick and rigid way. The jaws set into the casing ensure solid grip and prevent the pipes from pulling out. • Operating temperature: -40 ~ 110 °C (-40 ~ 230 °F) • Quick and easy to install • Reduced installation costs as compared to welded junctions • No pressure drop along pneumatic line • No contamination due to silicone gasket • Suitable for all pipe thicknesses • GT coupling can be rotated to provide easy access to nuts and bolts • Maintenance-free
